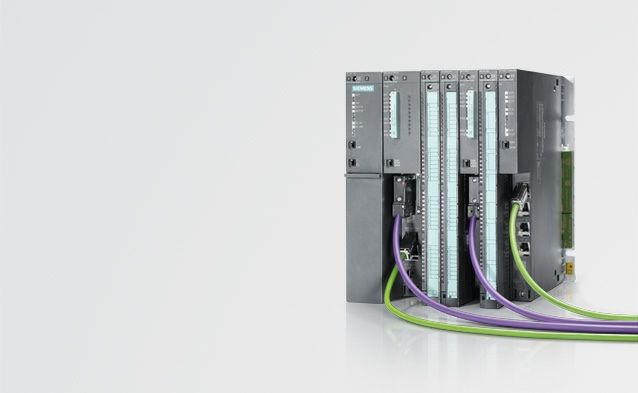

SIMATIC S7-400 process controller:

A powerful solution




The modular programmable controller for solving complex problems of automatic control . A wide range of modules for maximum adaptation to the task .

The use of distributed input-output structure and simple switching of network configuration .


Hot "swappable . Comfortable design and working with natural cooling. The free capacity of functionality when upgrading the control system .


High performance thanks to the large number of built-in functions.


Order Numbers


CPU 412-1

6ES7 412-1XJ05-0AB0

CPU 412-2

6ES7 412-2XJ05-0AB0

CPU 412-2 PN / DP

6ES7 412-2EK06-0AB0

CPU 414-2

6ES7 414-2XK05-0AB0

CPU 414-3

6ES7 414-3XM05-0AB0

CPU 414-3 PN / DP

6ES7 414-3EM06-0AB0

CPU 416-2

6ES7 416-2XN05-0AB0

CPU 416-3

6ES7 416-3XR05-0AB0

CPU 416-3 PN / DP

6ES7 416-3ES06-0AB0

CPU 417-4

6ES7 417-4XT05-0AB0

Memory card of a long execution



6ES7 952-0AF00-0AA0

256 KB

6ES7 952-1AH00-0AA0

1 MB

6ES7 952-1AK00-0AA0

2 MB

6ES7 952-1AL00-0AA0

4 MB

6ES7 952-1AM00-0AA0

8 MB

6ES7 952-1AP00-0AA0

16 MB

6ES7 952-1AS00-0AA0

64 MB

6ES7 952-1AY00-0AA0

Flash EEPROM, 5V


6ES7 952-0KF00-0AA0

256 KB

6ES7 952-0KH00-0AA0

1 MB

6ES7 952-1KK00-0AA0

2 MB

6ES7 952-1KL00-0AA0

4 MB

6ES7 952-1KM00-0AA0

8 MB

6ES7 952-1KP00-0AA0

16 MB

6ES7 952-1KS00-0AA0

32 MB

6ES7 952-1KT00-0AA0

64 MB

6ES7 952-1KY00-0AA0

Interface sub module IF 964-DP for PROFIBUS-DP in the CPU 41x-3 and CPU 417-4

6ES7 964-2AA04-0AB0

Software and accessories for programming

STEP 7 version 5.5

6ES7 810-4CC10-0YA5

PC Adapter (MPI / USB)

6ES7 972-0CB20-0XA0

Power Supplies

PS 405

Input: DC 24V, output = 5V/4A

6ES7 405-0DA02-0AA0

Input: DC 24V, output = 5V/10A

6ES7 405-0KA02-0AA0

Input: DC 24V, output = 5V/10A, reservation

6ES7 405-0KR02-0AA0

Login: = 24/48/60V, yield = 5V/20A

6ES7 405-0RA02-0AA0

PS 407

Input: 120/230V ~, yield = 5V/4A

6ES7 407-0DA02-0AA0

Input: ~ = 120/230V or 110/230V, output = 5V/10A

6ES7 407-0KA02-0AA0

Input: ~ = 120/230V or 110/230V, output = 5V/10A, reservation

6ES7 407-0KR02-0AA0

Input: ~ = 120/230V or 110/230V, output = 5V/20A

6ES7 407-0RA02-0AA0

Backup battery 3.6V/1.9Ach (one in units 4A, two blocks of the rest)

6ES7 971-0BA00

The input modules

SM 421

digital signals


4x8 DI = 24V

6ES7 421-1BL01-0AA0

4x8 DI ~ 120V

6ES7 421-1EL00-0AA0

4x4 DI 120/230V AC or DC, IEC1131-2 type 2

6ES7 421-1FH20-0AA0

2x8 DI = 24V, the propagation delay of 0.05ms, the interrupt signal, diagnostics

6ES7 421-7BH01-0AB0

16x1 DI 24 ... 60 V UC, an interrupt signal, diagnostics

6ES7 421-7DH00-0AB0

Digital output module

SM 422

1x16 DO = 24V / 2A

6ES7 422-1BH11-0AA0

1x32 DO = 24V / 0.5A

6ES7 422-1BL00-0AA0

4x4 DO ~ 120/230V / 2A

6ES7 422-1FH00-0AA0

8x2 relay outputs 5 .. ~ 230V / 5A

6ES7 422-1HH00-0AA0

4x8 DO = 24V / 0.5A, the propagation delay of 0.15 ms, diagnosis

6ES7 422-7BL00-0AB0

Input-output analog signals SM 431 and SM 432

16 AI ? 10V, ? 20 mA, 4 ... 20 mA, 13 bit, 65 ms / channel

6ES7 431-0HH00-0AB0

8 AI, U / I / R, 13 bits. 25ms/ Channel

6ES7 431-1KF00-0AB0

8 AI, U / I / R / Pt100, 14 bits. 25m/Channel

6ES7 431-1KF10-0AB0

8 AI, U / I / R, 14-bit scanning time 0.416 ms

6ES7 431-1KF20-0AB0

8 AI; U / I / TC, 16 bits 2.5-100 ms, diagnostics, alarm

6ES7 431-7KF00-0AB0

8 AI, R / Pt100 / Ni100, 16 bit, 25 ms, diagnostics, alarm

6ES7 431-7KF10-0AB0

16 AI, U / I / R / TC / Pt100, 2,5-25 ms/channel 16 bit, diagnostics, alarm

6ES7 431-7QH00-0AB0

8 AO, U / I, 0.42 ms 13 bits / channel

6ES7 432-1HF00-0AB0

Functional modules with software on CD

FM 450-1, high-speed counter, 2h500kGts, 5 - or 24 incremental Sensors

6ES7 450-1AP00-0AE0

FM 451, 3-channel positioning. Discrete control

6ES7 451-3AL00-0AE0

FM 452 electronic Controllers

6ES7 452-1AH00-0AE0

FM 453, 3-channel positioning. Analog control.

6ES7 453-3AH00-0AE0

FM 455C, 16-channel controller with analog outputs

6ES7 455-0VS00-0AE0

FM 455S, 16-channel controller with pulse output

6ES7 455-1VS00-0AE0

Front connector


with screw terminals

6ES7 492-1AL00-0AA0

with spring contacts

6ES7 492-1BL00-0AA0

contacts, latches

6ES7 492-1CL00-0AA0

Communicati on modules

PtP communication

CP 440 interface RS422/RS485 to 115.2Kbit /s, with software on CD

6ES7 440-1CS00-0YE0

CP 441-1, 1-channel module with software on CD, without IF 963

6ES7 441-1AA05-0AE0

CP 441-2, 2-channel, with the software on the CD, without IF 963

6ES7 441-2AA05-0AE0

The interface

IF 963-RS232, up to 115.2Kbit / s

6ES7 963-1AA10-0AA0


IF 963-TTY, to 19.2Kbit / s

6ES7 963-2AA10-0AA0

CP 441

IF 963-RS422/RS485 (X.27), to 115.2Kbit / s

6ES7 963-3AA10-0AA0

Connecting cables

RS 232 - RS 232, 9-pole


6ES7 902-1AB00-0AA0

D-type connectors


6ES7 902-1AC00-0AA0



6ES7 902-1AD00-0AA0

TTY - TTY, ith 9-pin D-type connectors


6ES7 902-2AB00-0AA0


6ES7 902-2AC00-0AA0


6ES7 902-2AG00-0AA0

RS 422 - RS 422, with a 15-pole


6ES7 902-3AB00-0AA0

D-type connectors


6ES7 902-3AC00-0AA0



6ES7 902-3AG00-0AA0


CP 443-5 Extended, master PROFIBUS-DP

6GK7 443-5DX05-0XE0

CP 443-5 Basic, PROFIBUS-FMS

6GK7 443-5FX02-0XE0

Industrial Ethernet

CP 443-1, 10/100Mbps, ISO + TCP, RJ45 + AUI / ITP

6GK7 443-1EX20-0XE0

CP 443-1 Advanced, 10/100 Mbit / s, TCP + ISO + UDP, 4xRJ45 for

6GK7 443-1GX20-0XE0




IM 460-0, up to 4 racks with IM 461-0, without chain = 5V, P + K bus

up to 5m

6ES7 460-0AA01-0AB0


IM 460-1, 1 rack with IM 461-1, with chain = 5V, P bus

to 1.5 m

6ES7 460-1BA01-0AB0


IM 460-3, up to 4 racks with IM 461-3, without chain = 5V, P + K bus

up to 102m

6ES7 460-3AA01-0AB0


IM 463-2, up to 4 expansion racks SIMATIC S5

up to 600m

6ES7 463-2AA00-0AA0



IM 461-0, connection to the IM 460-0 / IM 461-0

6ES7 461-0AA01-0AA0


IM 461-1, IM 460-1 connection

6ES7 461-1BA01-0AA0


IM 461-3, connection to the IM 460-3 / IM 461-3

6ES7 461-3AA01-0AA0


The terminating resistor

for the IM 461-0

6ES7 461-0AA00-7AA0


for the IM 461-3

6ES7 461-3AA00-7AA0


stand base

CR2, 2 segments of tires

18 modules

6ES7 401-2TA01-0AA0


4 modules

6ES7 401-1DA01-0AA0

Expansion Rack


18 modules

6ES7 403-1TA01-0AA0

(Does not support CP and FM

ER1 (aluminium)

18 modules

6ES7 403-1TA11-0AA0



9 modules

6ES7 403-1JA01-0AA0


ER2 (aluminium)

9 modules

6ES7 403-1JA11-0AA0

flexible stand


18 modules

6ES7 400-1TA01-0AA0

(Base unit / expansion rack)

UR1 (aluminium)

18 modules

6ES7 400-1TA11-0AA0



9 modules

6ES7 400-1JA01-0AA0


UR2 (aluminium)

9 modules

6ES7 400-1JA11-0AA0

Fan unit for mounting racks with 18 modules

24V DC power supply

6ES7 408-1TA01-0XA0

120/230V power supply ~

6ES7 408-1TB00-0XA0

Cable channel for mounting racks with 18 modules

6ES7 408-0TA00-0AA0

Replaceable fan unit

6ES7 408-1TA00-6AA0

Air filter

6ES7 408-1TA00-7AA0
