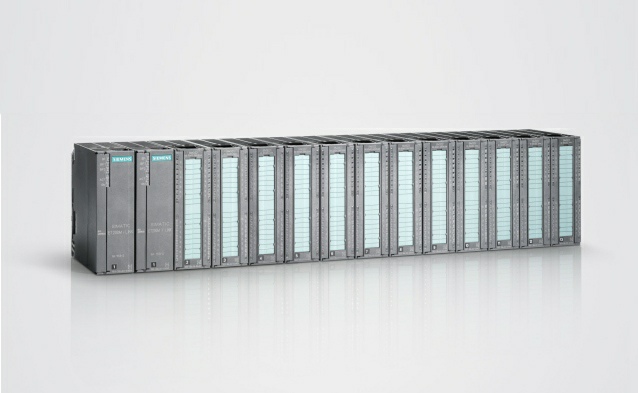

Multifunction station distributed IO




SIMATIC ET 200M - a multifunctional station distributed input-output, allowing the use of its signal structure, function and communication modules PLC SIMATIC S7-300. It can be equipped with interface modules for connection to industrial networks PROFIBUS DP and PROFINET IO. In a PROFIBUS DP network ET 200M station serves as a standard DP slave device. It is able to support the exchange of data with the DP device at speeds up to 12 Mbit / s.



Order Numbers

Interface  Modules

IM 153-1

6ES7 153-1AA03-0XB0

IM 153-2 HF

6ES7 153-2BA02-0XB0

IM 153-4 PN IO

6ES7 153-4AA01-0XB0

Set ET 200M

IM 153-2 HF, 1x BM PS / IM and 482 mm mounting rail

6ES7 654-0XX08-1XA0

Redundant 2x IM 153-2 HF and 1x BM IM / IM

6ES7 153-2AR03-0XA0

Profile Shea us

without the "hot" for the swap modules

160 mm

6ES7 390-1AB60-0AA0

482 mm

6ES7 390-1AE80-0AA0

530 mm

6ES7 390-1AF30-0AA0

with the "hot"  replacement modules

482 mm, for up to 5 active bus connectors

6ES7 195-1GA00-0XA0

530 mm, for up to 5 active bus connectors

6ES7 195-1GF30-0XA0

620 mm, for mounting active bus connectors

6ES7 195-1GG30-0XA0

Active bus  connectors

BM PS / IM for the power supply module and the IM 153

6ES7 195-7HA00-0XA0

BM IM / IM for 2 modules IM 153-2 (FO) HF

6ES7 195-7HD10-0XA0

BM 2x40 for 2 modules S7-300 wide by 40mm

6ES7 195-7HB00-0XA0

BM 1x80 for 1 module S7-300 80 mm wide

6ES7 195-7HC00-0XA0

for the installation of the separation module

6ES7 195-7HG00-0XA0

Protective covers for active bus connectors:


6ES7 195-1JA00-0XA0

Separator module

6ES7 195-7KF00-0XA0

Ex-dividing wall

5 pcs.

6ES7 195-1KA00-0XA0

Signal Modules for

IM 153-2 or

IM 153-2 (FO) HF


SM 321: 16 digital inputs NAMUR

20 terminals

6ES7 321-7TH00-0AB0

SM 322: 16 digital outputs = 24V/0.5A

20 terminals

6ES7 322-8BH10-0AB0

SM 331: 2 inputs 0/4 ... 20 mA, HART protocol, Ex

20 terminals

6ES7 331-7TB00-0AB0

SM 331: 8 inputs 0/4 ... 20 mA, HART protocol

20 terminals

6ES7 331-7TF01-0AB0

SM 332: 2 outputs 0/4 ... 20 mA, HART protocol, Ex

20 terminals

6ES7 332-5TB00-0AB0

SM 332 8 outputs 0/4 ... 20 mA, HART protocol

20 terminals

6ES7 332-8TF01-0AB0

Front connector

klemmys screw

20 terminals

6ES7 392-1AJ00-0AA0

contacts latch

6ES7 392-1BJ00-0AA0
